 Posted: Thu Feb 07, 2008 1:26 pm Post subject: Maintenance Guide for the Rapid(with PDF and Video!!) |
 |
|
*******UPDATED*********
****Now has Listing of O-rings and Diagram*********

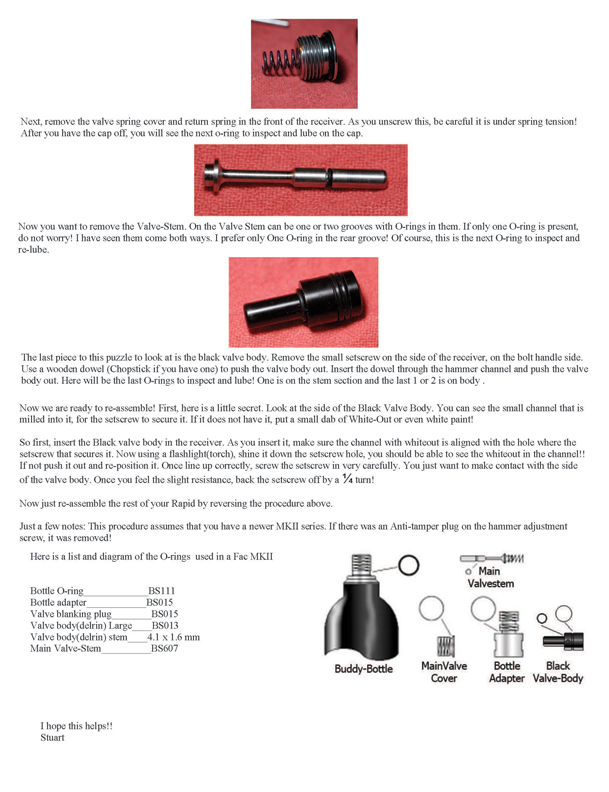

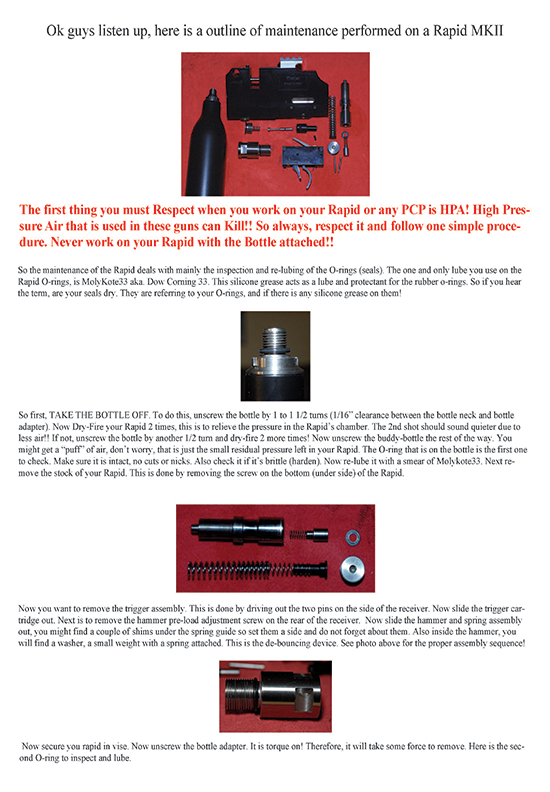

Here is an update for those who requested it. I added some photos of the parts you will be dealing with. Also there is a pdf file for you reference!!!
http://photos.imageevent.com/scl_electronics/gun/air/Rapid%20Maintenance%20v3.pdf
Any other questions just Ask!!
Stuart
_________________
Last edited by Ca_Varminter on Mon Mar 29, 2010 12:08 pm; edited 10 times in total |
|
| Back to top |
|
 |
milo2005
Marksman
Joined: 17 Jan 2008
Posts: 80
City, State: Langold uk
|
| Posted: Thu Feb 07, 2008 4:37 pm Post subject: |
|
|
cheers stu
you hammer looks diffrent to the uk one's i have seen
_________________
Rapid shooter
Theoben rapid 12 mk1 .22
Deben tracer Pro max gun lamp
The rabbit killer!!!
http://www.rapid7owners.com/forums/index.php? |
|
| Back to top |
|
|
Airgunr
Sharpshooter
Joined: 13 Jan 2007
Posts: 466
City, State: Parkersburg, WV
|
| Posted: Thu Feb 07, 2008 4:53 pm Post subject: |
|
|
| Stuart....great info and the PDF is awesome as well. One thing you might consider adding...and this is very simple...but will definitely be a question from many of the Rapid newbies, is the proper way/method to take the bottle off the Rapid. Great job!! |
|
| Back to top |
|
|
Ca_Varminter
Site Admin
Joined: 17 Apr 2005
Posts: 4129
City, State: N. California, USA
|
| Posted: Thu Feb 07, 2008 5:13 pm Post subject: |
|
|
Milo2005,
That is a standard FAC/Export hammer that came with my Mark4 trigger. I convert my Early MKII w/sporter trigger to Mark4!!(the hammers are different between the two triggers!)
Cheers M8
Airgunr,
The removing of the bottle is more a daily/regular operation when shooting. But I do see your point and will add it to the guide. Stay tune HERE!!
Stuart
_________________
|
|
| Back to top |
|
|
katluke
Marksman
Joined: 21 Jan 2007
Posts: 136
City, State: UK
|
| Posted: Thu Feb 07, 2008 8:39 pm Post subject: |
|
|
| I have got 7 pdf formats for the Rapid range stored here on my computer.I will try and work out how to post them up on here.Bear with me till I get somebody to show me how. |
|
| Back to top |
|
|
Ca_Varminter
Site Admin
Joined: 17 Apr 2005
Posts: 4129
City, State: N. California, USA
|
| Posted: Thu Feb 07, 2008 11:28 pm Post subject: |
|
|
The post and pdf has been Updated with added text on how to remove the Buddy-bottle!!
Stuart
_________________
|
|
| Back to top |
|
|
Scott in CO
Expert
Joined: 20 Feb 2007
Posts: 934
City, State: CO
|
| Posted: Fri Feb 08, 2008 1:18 am Post subject: |
|
|
Thanks for that Stuart! Can you tell me, is this molykote 33 or dow corning 33 readily available? Will I find it at my local Ace hardware? Or it a little harder to find than that? Is silicone divers grease (bought from a dive shop and made specificly for scuba gear) suitable/acceptable?
regards,
Scott in CO |
|
| Back to top |
|
|
milo2005
Marksman
Joined: 17 Jan 2008
Posts: 80
City, State: Langold uk
|
| Posted: Fri Feb 08, 2008 11:00 am Post subject: |
|
|
| Ca_Varminter wrote: | Milo2005,
That is a standard FAC/Export hammer that came with my Mark4 trigger. I convert my Early MKII w/sporter trigger to Mark4!!(the hammers are different between the two triggers!)
Cheers M8
Airgunr,
The removing of the bottle is more a daily/regular operation when shooting. But I do see your point and will add it to the guide. Stay tune HERE!!
Stuart |
got ya !!
cheers mark
_________________
Rapid shooter
Theoben rapid 12 mk1 .22
Deben tracer Pro max gun lamp
The rabbit killer!!!
http://www.rapid7owners.com/forums/index.php? |
|
| Back to top |
|
|
Ca_Varminter
Site Admin
Joined: 17 Apr 2005
Posts: 4129
City, State: N. California, USA
|
| Posted: Fri Feb 08, 2008 12:29 pm Post subject: |
|
|
| Scott in CO wrote: | Thanks for that Stuart! Can you tell me, is this molykote 33 or dow corning 33 readily available? Will I find it at my local Ace hardware? Or it a little harder to find than that? Is silicone divers grease (bought from a dive shop and made specificly for scuba gear) suitable/acceptable?
regards,
Scott in CO |
Scott in CO.
Dow Corning is a a bit thicker than scuba silicone grease.Also it israte as a low temp grease! But Scuba silicone grease will work in a pinch!!!
You can do a net search for Dow Corning 33. I have bought a few tubes from Mcmaster-Carr thru the years!!!
hth,
Stuart
_________________
|
|
| Back to top |
|
|
Airgunr
Sharpshooter
Joined: 13 Jan 2007
Posts: 466
City, State: Parkersburg, WV
|
| Posted: Fri Feb 08, 2008 2:46 pm Post subject: |
|
|
| Stuart...if a seal is damaged or needs replaced where's the best place to purchase replacements? |
|
